Vela Pop Up Roof

Vela

Pop-up roof

  • Specifically designed for Fiat Ducato H2 vehicles
  • Top and bottom panels are constructed with thermoformed technology using acrylonitrile butadiene styrene (ABS) and polymethyl methacrylate (PMMA) with closed-cell extruded polystyrene foam spacers
  • Construction materials make this pop top lighter than standard rooftop units
  • Canvas made from 100% double-coated polyester
  • Two LED map lights illuminate the area around the bed for safety

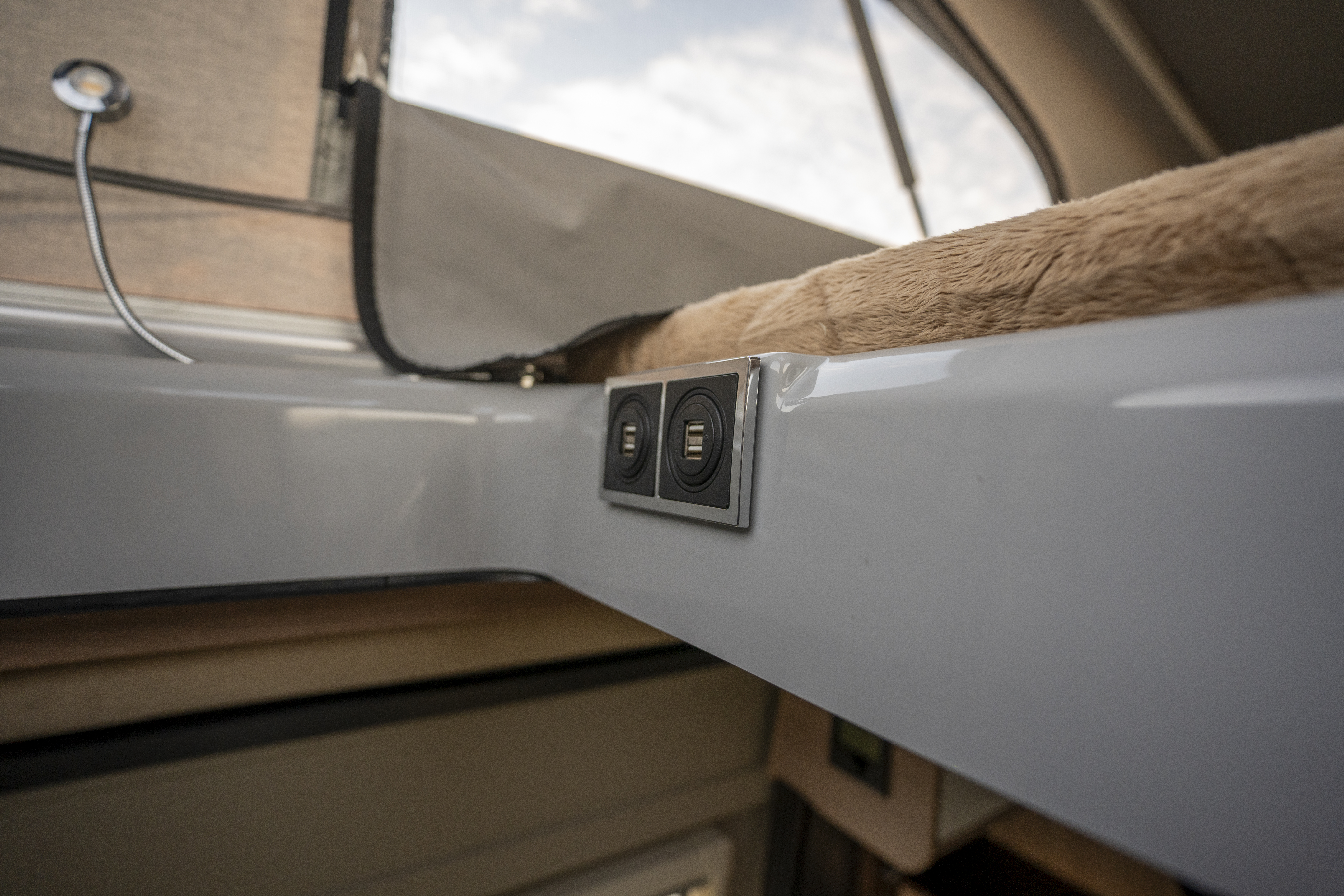

  • Pre-wired with electric cable to manage the roof light and solar panel (not included)
  • Includes folding ladder for rooftop access
  • Large aluminum bed frame with wooden slats provides ample sleeping space (mattress not included)
  • Installation glue kit sold separately (#2021135968)
Color options*
Fiat 549 White
Ral 7040 Window Grey
* Color swatches are representative only. Please call for exact color specifications.

Download Catalog
Part # Space Length Width Height Weight Solar Panel Allowance
2022015540 Closed 3.000mm 1.620mm 260mm 150kg 220 watts
Opened 3.000mm 1.620mm 1.080mm
Entrance 1.000 or 1.100 mm 600mm --
Bed base 1.950mm 1.250mm 35mm
Accepts mattress size 1.950mm 1.250mm 50mm
