PIUMA


Fully-integrated Polymer frame window system

  • Lightweight manually operated tilt window

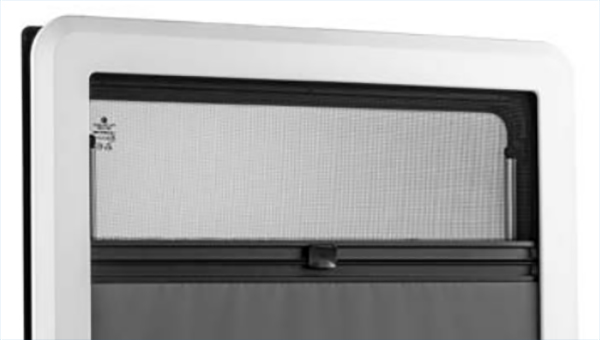

  • Extremely flush and minimalistic design
  • Complete, super thin window system, including frame, integrated rollo blind system and click-on interior finish
  • Installation in straight walls
  • Injection molded polymer frame

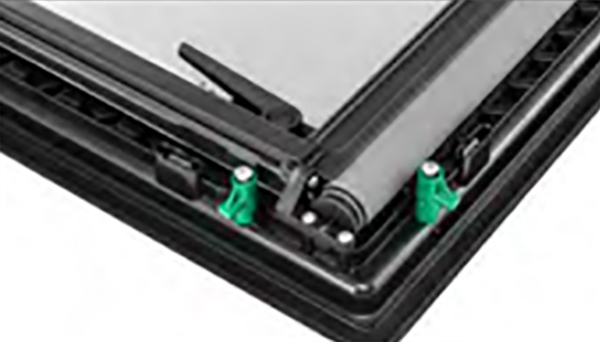

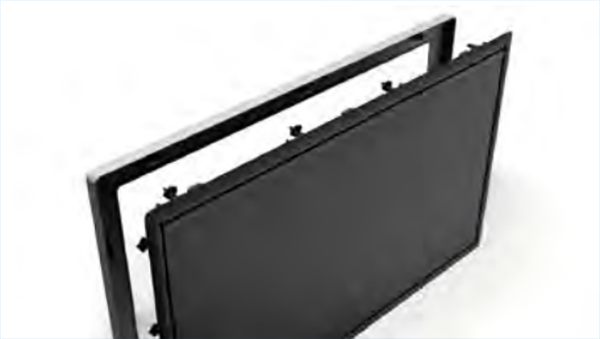

  • Two-part assembly with integrated mounting clamps allow for easy installation in minutes
  • Custom screen print design possible

Download Catalog

Additional Technical Features

  • Wall aperture radius 12 mm
  • Wall thickness 24 - 38 mm (yellow clamps), 31 - 35 mm (green clamps), 36 - 41 mm (blue clamps)
  Standard Wall Aperture Ranges
  Build-up height from wall 5 - 15 mm
W  Standard width range: 500 - 1.300 mm
H  Standard height range: 400 - 580 mm
